Analog Panel Meter Mechanism Types

Taut Band

A D'Arsonval Taut Band panel meter mechanism is comprised of a permanent magnet and moving coil. The suspended Taut Band is constructed of high quality alloy material which offers the customer durability and long life. This type of movement offers the advantage of friction free suspension.

Pivot & Jewel

A D'Arsonval Pivot & Jewel panel meter mechanism is comprised of a hardened pivot between two polished bearing surfaces, this movement is very rugged and shock resistant. This mechanism is suitable for use in marine, process and industrial applications.

Iron Vane

The AC Iron Vane (Moving Iron) mechanism is used primarily in AC Voltage, AC Current and Power Measurement applications. These meters are rugged in both design and construction. They offer the advantage of more accurate True RMS measurement capability when distorted, or non-sinusoidal waveforms are present.

Electrical Specification

Meet or Exceed ANSI C39.1.1981

  • Repeatability
  • Dielectric Test Voltage
  • AC Burden
  • Accuracy: +/-2% DC
                            +/-2% AC Iron Vane
    +/-3% AC Rectified

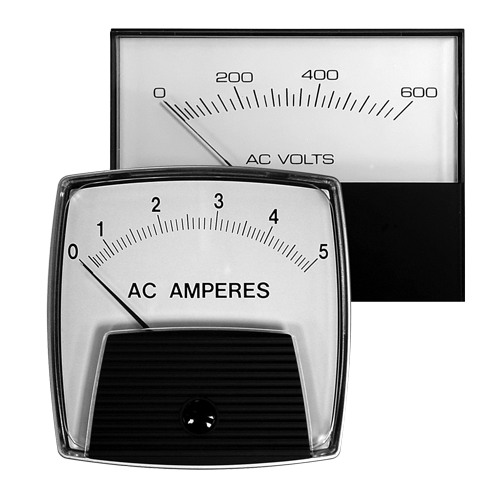

AC Input Analog Panel Meters

Panel Meter Mounting Types

  • Panel Board
  • Surface Mount
  • Window Mount

Meter Sizes

  • Panel Board: 2½", 3½", 4½"
  • Surface Mount: 2½", 3½", 4½"
  • Window Mount: 2½", 3½", 4½"

Movement types

  • Iron Vane

Pointer Position

  • Zero Left

Input Signals

  • AC Amperes (A AC) - 1A, 5A, 10A, 20A, 30A, 50A, etc.
  • AC Volts (V AC) - 50V, 100V, 150V, 300V, 600V, etc.

Input Signal Ranges

  • AC Amperes: 1A Min., 50A Max.
  • AC Volts: 50V Min., 600V AC Max.
ac input analgo panel meter

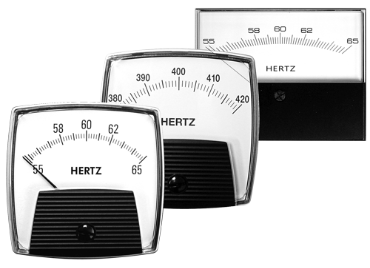

AC Frequency Analog Panel Meters

Panel Meter Mounting Types & Sizes:

  • Panel Board: 2½”, 3½”, 4½”
  • Surface Mount : 2½”, 3½”, 4½”, 5½”
  • Window Mount : 2½”, 3½”, 4½”, 5½”

Meter Movement Type:

  • Pivot & Jewel

  • Taut Band

Frequency (Hertz) Ranges:

  • 45-55Hz, 115/230V AC
  • 55-65Hz, 115/230V AC
  • 45-65Hz, 115/230V AC
  • 380-420Hz, 115/230V AC

Zero Position:

  • Zero Left


  • +/-3% of Span (+/-0.3Hz for 10Hz Span)
AC Frequency Analog Panel Meters

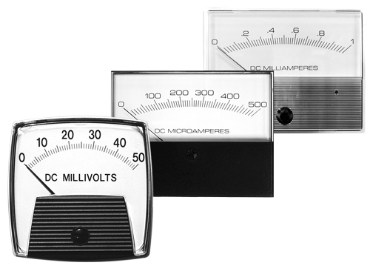

DC Input Analog Panel Meters

Panel Meter Types & Sizes

  • Panel Board: 1½", 2½", 3½", 4½"
  • Surface Mount: 1½", 2½", 3½", 4½", 5½"
  • Window Mount: 1½", 2½", 3½", 4½", 5½"

Movement types

  • Pivot & Jewel
  • Taut Band

Pointer Position

  • Zero Left
  • Zero Center
  • Zero Right

Input Signals

  • DC Microamperes (µA DC) - 50uA, 100uA, 200uA, etc.
  • DC Milliamperes (mA DC) - 1mA, 4-20mA, 10mA, 100mA, etc.
  • DC Amperes (A DC) - 1A, 5A, 10A, 20A, 30A, etc.
  • DC Millivolts (mV DC) - 50mV, 100mV, 200mV, 500mV, etc.
  • DC Volts (V DC) - 1V, 3V, 5V, 10V, 50V, 100V, 150V, 300V, etc.

Input Signal Ranges

  • DC Amperes: 50 µA Min., 50A Max.
  • DC Volts: 15mV Min., 600V DC Max.

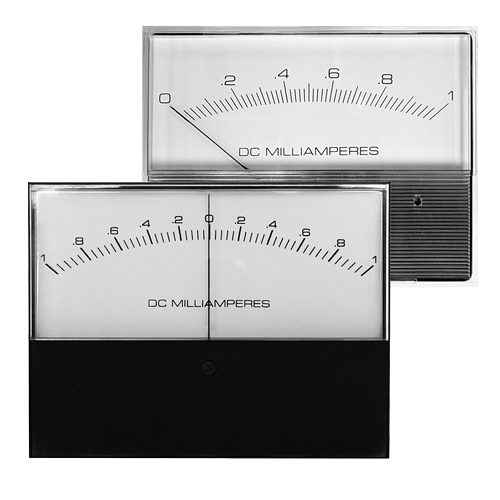

DC Ammeters & DC Voltmeters

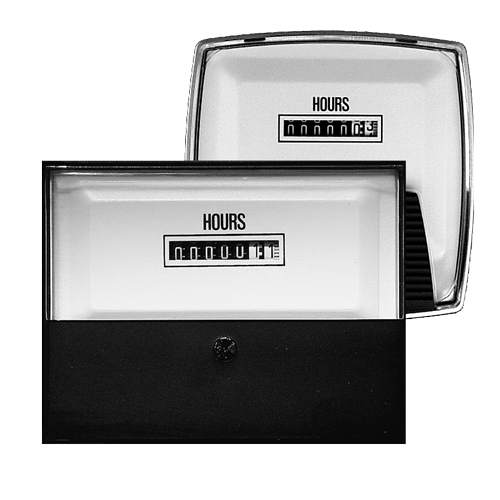

Elapsed Time Meters

Panel Meter Mounting Types & P/N:

  • Panel Board - P3ETM (3 1/2" size)
  • Surface Mount - S3ETM (3 1/2" size)

Input Range:

  • 0 to 99,999.99
  • Non-resettable Reading Recycles to 0


  • 1.2 Times for 2 Hours
  • 2 Times for 5 Seconds


  • 120V AC, 60Hz (105 to 130v AC)
  • Optional 230V AC, 60Hz (200 to 250V AC)

Operating Temperature:

  • -20 ° to 65 ° C

Analog Panel Meter

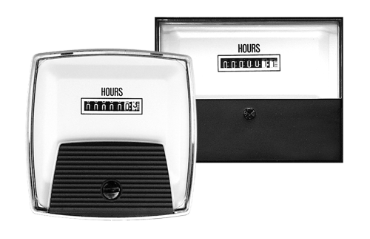

P3ETM (front)            S3ETM (back)
