DIGITAL MULTIMETERS

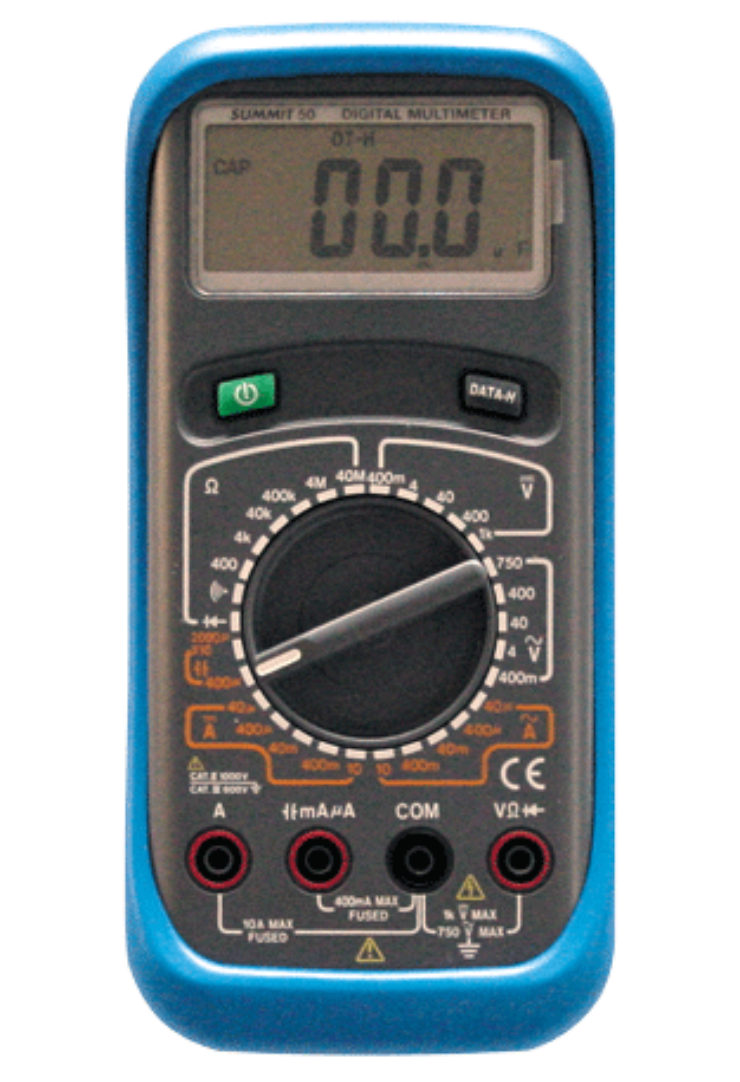

SUMMIT50
Features
· LCD Display w/ 4000 Count
· Measures MAX.: 1000V DC/750V AC
· Best DC Volt Resolution: 0.1mV
· Basic DC Volt Accuracy: 0.5% of reading
· Best AC Volt Resolution: 0.1mV
· Basic AC Volt Accuracy: 0.8% of reading
· Measures MAX. 10A DC/10A AC
· Best DC Amp Resolution: 0.01μA
· Basic DC Amp Accuracy: 0.5% of reading
· Best AC Amp Resolution: 0.01μA
· Basic AC Amp Accuracy: 1% of reading
· Capacitance: 20,000F
· Measures MAX. 40MOhm
· Capacitance: 20,000μF
· DATA HOLD
· DIODE TEST
· CONTINUITY BUZZER
· CE, IEC1010 Approved

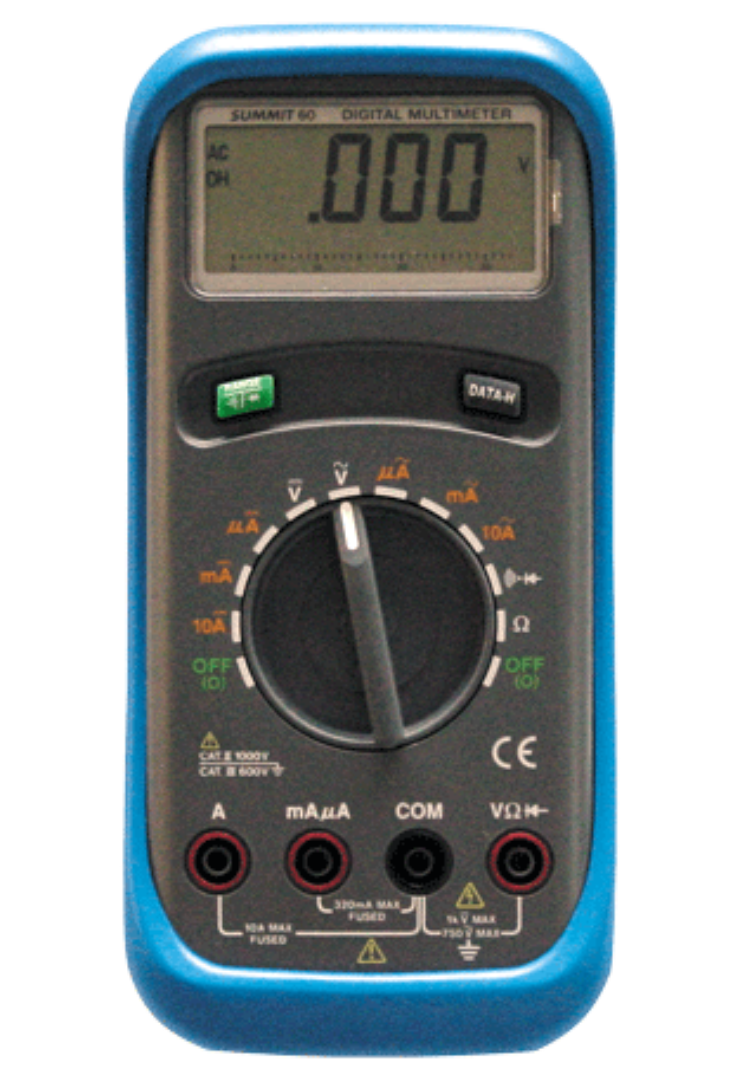

SUMMIT60
Features
· AUTO RANGING
· ANALOG BAR GRAPH
· LCD Display w/ 3260 Counts
· Measures MAX.: 1000V DC/750V AC
· Best DC Volt Resolution: 0.1mV
· Basic DC Volt Accuracy: 0.5% of reading
· Best AC Volt Resolution: 0.001V
· Basic AC Volt Accuracy: 1.2% of reading
· Measures MAX. 10A DC/10A AC
· Best DC Amp Resolution: 0.1μA
· Basic DC Amp Accuracy: 1% of reading
· Best AC Amp Resolution: 0.1μA
· Basic AC Amp Accuracy: 2% of reading
· Measures MAX. 32MOhm
· DATA HOLD
· DIODE TEST
· CONTINUITY BUZZER
· SLEEP MODE / AUTO POWER OFF
· CE, IEC1010 Approved
· UL Listed
SUMMIT85/SUMMIT86
Features
· AUTO RANGING
· ANALOG BAR GRAPH
· LCD Display w/ 4000 Count, Backlight Display
· Triple Readout Display
· Measures MAX.: 1000V DC/750V AC
· Best DC Volt Resolution: 0.1mV
· Basic DC Volt Accuracy: 0.3% of reading
· Best AC Volt Resolution: 0.001V
· Basic AC Volt Accuracy: 0.75% of reading
· Measures MAX. 10A DC/10A AC
· Best DC Amp Resolution: 0.1μA
· Basic DC Amp Accuracy: 0.5% of reading
· Best AC Amp Resolution: 0.1μA
· Basic AC Amp Accuracy: 0.75% of reading
· Frequency: 200kHz
· Measures MAX. 40MOhm
· Capacitance: 10,000μF (Summit85)
4,000nF (Summit86)
· TRUE RMS
· DATA HOLD, DIODE TEST, CONTINUITY BUZZER
· RELATIVE MODE, COMPARE MODE
· RECORD MODE MIN/MAX/AVE
· SLEEP MODE / AUTO POWER OFF
· RS-232 Output
· CE, IEC1010 Approved
· UL Listed
SUMMIT612/SUMMIT622
Features
· AUTO RANGING
· ANALOG BAR GRAPH
· LCD Display w/ 4000 Count
· Measures MAX.: 1000V DC/750V AC
· Best DC Volt Resolution: 0.1mV
· Basic DC Volt Accuracy: 0.3% of reading
· Best AC Volt Resolution: 0.001V
· Basic AC Volt Accuracy: 0.75% of reading
· Measures MAX. 10A DC/10A AC
· Best DC Amp Resolution: 0.1μA
· Basic DC Amp Accuracy: 0.5% of reading
· Best AC Amp Resolution: 0.1μA
· Basic AC Amp Accuracy: 0.75% of reading
· Frequency: 200kHz
· Measures MAX. 40MOhm
· Capacitance: 1000μF
· Temperature: -40ºC to 1370ºC (Summit622 only)
· TOTAL HARMONIC DISTORTION
· TRUE RMS
· DATA HOLD, DIODE TEST, CONTINUITY BUZZER
· RELATIVE MODE, COMPARE MODE (Summit622 only)
· RECORD MODE MIN/MAX/AVE
· SLEEP MODE / AUTO POWER OFF
· CE, IEC1010 Approved

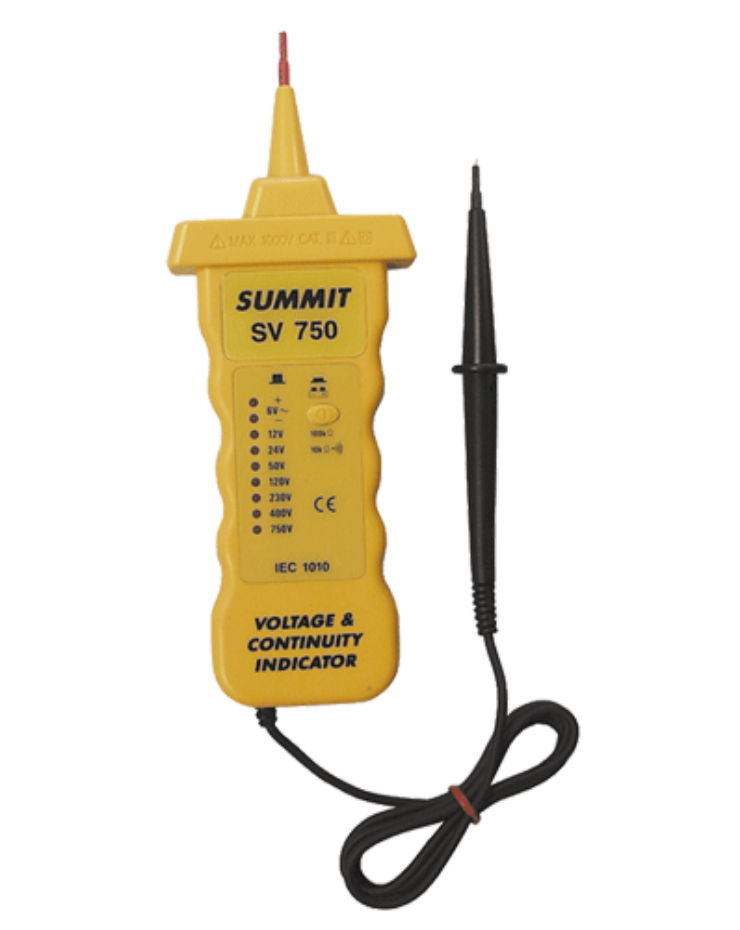

SV750
Features
· LEDs Clearly Indicate Eight AC and DC Nominal Voltage Levels
· DC Polarity Display, Continuity Beeper or Diode Test
· Designed to Comply with Safety Standard IEC1010
· Input Impedance: Approx. 5M Ohms
· Continuity Threshold: Beeper on at <Approx. 10K Ohms
· AC Frequency Response: 45Hz to 400Hz
· Voltage Levels: 6, 12, 24, 50, 120, 230, 400, 750V

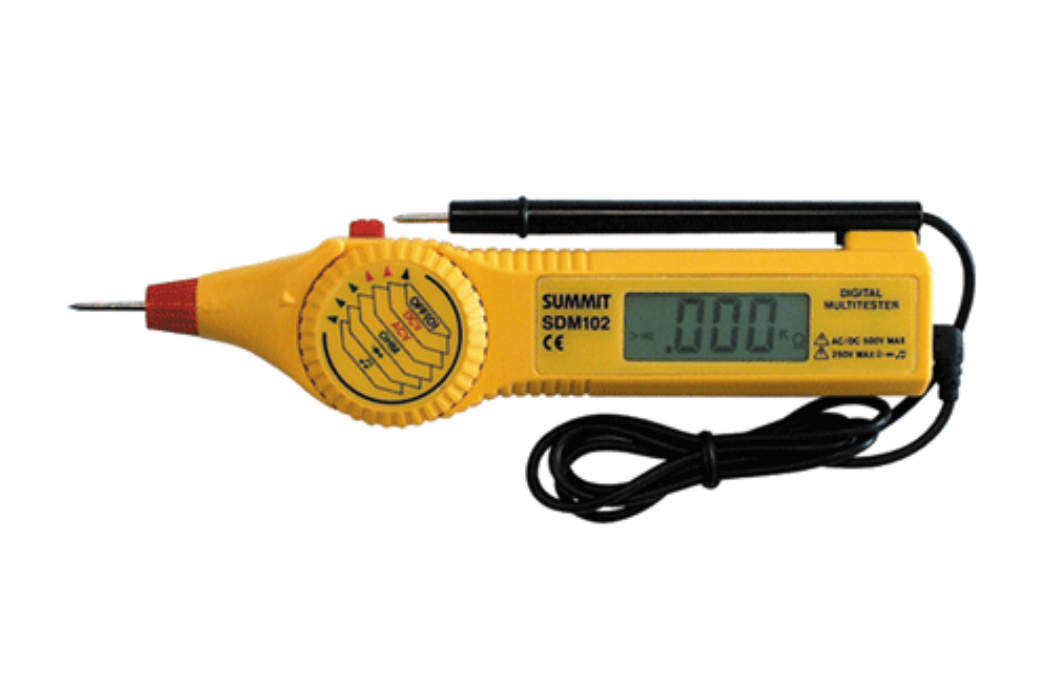

SDM102/SDM103
Features
· Easy to read 3 ½ digit LCD display
· Low battery indication
· Audible continuity buzzer
· Auto ranging
· Data hold
· Compact pocket size
· Pocket size carrying case
· Attached test leads
· Diode test function
· Overrange indication
· Logic Level indication (SDM 103 only)
