Scalable Range LCD/LED Digital Panel Meters

scalable digital panel meter

Window Mount

dc voltmeters and ammeters

Bezel Mount

dc voltmeter and ammeters

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN

3 1/2 Digit Scalable Panel Meter Features:

  • Transducer or transmitter outputs can be displayed in engineering units.
  • Shallow depth, only 1 inch.

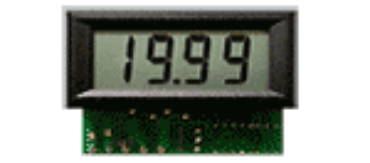

  • Snap-In Bezel panel meters - no mounting hardware required.
  • Switch selectable SPANS for accurate & stable adjustment in engineering units.
  • 25 turn SPAN adjustment for accurate calibration
  • Switch selectable decimal points
  • Space saver case requires 60% less panel space comparing with 1/8 DIN case
  • Screw terminal connector
  • Low power consumption
  • Display reading - User adjustable display range from 0 to 100 counts up to 0 to 1999 counts with switch selectable SPANS and SPAN adjustment

DC Input Panel Meters - Voltmeters & Ammeters

3 1/2 Digit Panel Meter -
DC Voltmeters And Ammeters

Transducer or transmitter output can be displayed in engineering units.

Example:

  • 0 to 2mA DC output can be adjusted to display up to 0 to 1999 counts.

Input Ranges

  • DC Voltage: 200mV, 2V, 20V, 200V, 350V
  • DC Current: 2mA, 20mA, 200mA, 2A

Window Mount

dc voltmeters and ammeters

Bezel Mount

dc voltmeter and ammeters

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN


DC Shunt Input Panel Meters - DC Ammeters

3 1/2 Digit Panel Meter -
High Current DC Shunts

US or international DC shunt outputs can be displayed in engineering units.

Example:

  • 0 to 20mV DC output can be displayed up to 0 to 1999 DC amperes.
  • 0 to 50mV DC output displays 1250 DC amperes.

Input Ranges

  • DC Voltage: 20mV, 50mV, 100mV
scalable digital panel meter

Window Mount

dc shunt panel meter

Bezel Mount

dc voltmeter and ammeters

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN


Process Input Panel Meters

3 1/2 Digit Panel Meter -
4-20mA DC or 1-5V DC

Transducer or transmitter process output can be displayed in engineering units. 4 to 20mA DC or 1 to 5V DC output can be adjusted to display up to 0 to 1999 counts.

Example:

  • 4 to 20mV DC output can be displayed up to 0 to 1999 DC amperes.
  • 1 to 5V DC output displays 0 to 1450 feet.

Input Ranges

  • DC Voltage: 20mV, 50mV, 100mV
4-20mA process panel meter

Window Mount

1-5V DC process panel meters

Bezel Mount

dc voltmeter and ammeters

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN


Loop Powered Input Panel Meters

3 1/2 Digit Panel Meter -
4-20mA DC

Process output loop current from a transducer or transmitter (4 to 20mA DC) output can be displayed in engineering units. 4 to 20mA DC or 1 to 5V DC output can be adjusted to display up to 0 to 1999 counts. These meters display the engineering units from the loop current input and do not require any external power.

Example:

  • 4 to 20mV DC output reads -200°C to 1500°C

Input Ranges

  • DC Current: 4 to 20mA
scalable digital panel meter

Window Mount

loop powered 4-20mA Dc

Bezel Mount

dc voltmeter and ammeters

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN


AC TRMS Panel Meters - AC Voltmeters & Ammeters

3 1/2 Digit Panel Meter -
AC Voltmeters And Ammeters

Accurate measurement of AC current transformers, transducers, and potential transformers.

Example

  • 0 to 5A AC output can be adjusted to display up to 0 to 1999 counts.
  • 0 to 5A AC output displays 1000 AC amperes.

Input Ranges

  • AC Voltage: 200mV, 2V, 20V, 200V, 350V
  • AC Current: 2mA, 20mA, 200mA, 2A, 5A
scalable digital panel meter

Window Mount

ac voltmeters and ammeters

Bezel Mount

ac voltmeter and ammeters

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN


AC Frequency Panel Meters

3 1/2 Digit Panel Meter -
AC Frequency (Hertz) Panel Meters

Accurate measurement of AC frequency


Frequency Ranges

  • 40.0 to 199.0 Hz with 0.1 Hz resolution
  • 40 to 600 Hz. with 1.0 Hz resolution
ac frequency panel meters

Window Mount

ac hertz panel meter

Bezel Mount

ac hz panel meter

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN


Temperature (K) Input Panel Meters

3 1/2 Digit Panel Meter -
K-type Thermocouple Input Panel Meters

Accurate measurement of temperature in Celsius or Fahrenheit


Frequency Ranges

  • -40°F to 650°F with 1° resolution
  • -40°C to 320°C. with 1° resolution
scalable digital panel meter

Window Mount

dc voltmeters and ammeters

Bezel Mount

dc voltmeter and ammeters

Snap-In Bezel Mount

scalable panel meters

1/8 NEMA4 DIN
